Apple VGA card
- Product Code: APPLEVGA
- Availability: 9
$25.00
- Ex Tax: $25.00

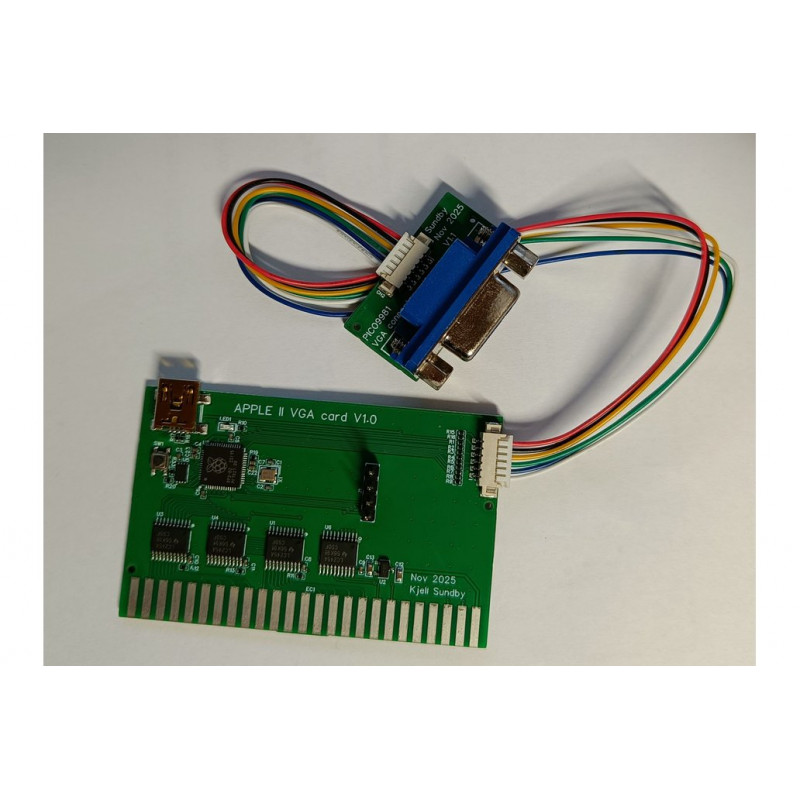

VGA card for Apple IIe and plus. With a VGA connector that can be mounted in one of the holes in the back of the Apple II.
Idea from https://github.com/markadev/AppleII-VGA. Redone with onboard RP2040 and flash. Fully assembled and tested.
These features are currently supported: (Taken from https://github.com/markadev/AppleII-VGA)
- Generates a 640x480@60 VGA signal with 3 bits per color channel using resistor DACs
- Text mode (monochrome)
- Lo-res mode with no color fringing between the chunky pixels
- Hi-res mode with simulated NTSC artifact color
- Mixed lo-res and hi-res modes with monochrome text and no color fringing
- Apple IIe video modes: 80-column text, double-lores, & double-hires (thanks to @dkgrizzly and @Paco1979)
- Soft-monochrome mode to force display as if on a monochrome monitor
- Some Video-7 RGB card extended graphical modes are implemented
- Compatibility with Videx VideoTerm modes on Apple II+ (thanks to @abaffa)
